Al-ko Water Resistant Unbraked Single Axle Up to 750kg

Name: Al-ko Water Resistant Unbraked Single Axle Up to 750kg
Brand: Al-ko
SKU: 138514198
Availability: InStock

Water Resistant Unbraked Single Axle Up to 750kg.

All made to measure axles have hot dip galvanised tubes & brackets.

Water Resistant Braked Axles feature maintenance-free water resistant bearings and bowden cables as standard.

Please complete the information required to produce the correct axle. The dimension ‘A’ is to the centre of the holes in the mounting brackets and ‘C’ is the outer hub face dimension. You will need to let us know the PCD of the wheels you are using and the maximum gross weight you would like the axle(s) to be made to. Please read the important notes and then you can click the add to basket button and continue through the checkout.

If you are replacing an existing axle that does not look like the diagram pictured below then you should complete our Axle Enquiry Form

In line with Al-ko Kober Ltd policy of constant improvement, they reserve the right to change the specifications without notice

Part No: 1385 141 98 Model: URB 700 Axle Type: 700-5

Standard dimensions for the axle are as follows:
D =	200mm
E =	50mm
F =	160mm
G =	13mm x 20mm
C1 =	Minimum 193mm Maximum 293mm
Wheel Inset =	0-30mm
Approx.Weight =	21kg

Please complete the following information:

Measurement A *

Measurement C *

Pitch Circle Diameter *How to calculate the PCD. ×How to measure The Pitch Circle Diameter (PCD) The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the centre of all the studs, wheel bolts or wheel rim holes. The easiest way calculate the PCD is as follows: Identify the size of rim or tyre size. (This helps to narrow down the likely PCD sizes) Measure the distance 'S' between two adjacent studs from the centre of each hole. Using the relevant formula below (depending on how many studs/holes you have) enter the measurement of 'S' and calculate the PCD Depending on how accurately the measurement of 'S' has been the PCD should equal one included in the table below. This table should also be able to help identify the correct PCD if 'S' in a few milimeters out. Note: Imperial sizes are commonly used on UK trailers whereas European trailers use metric. 4 Studs/Holes 5 Studs/Holes 6 Studs/Holes PCD Calculation Formula 4 Stud PCD = S 0.7071 5 Stud PCD = S 0.5878 6 Stud PCD = S 0.5 Popular wheel Sizes & Stud Patterns Rim Size Studs S PCD 8" 3 76.90mm 88.8mm 8" 3 95.26mm 110mm 8" 4 70.71mm 100mm 8" 4 71.84mm 101.6mm (4") 8" 4 81.32mm 115mm 8" 4 91.92mm 130mm 10" 4 70.71mm 100mm 10" 4 71.84mm 101.6mm (4") 10" 4 79.20mm 112mm 10" 5 65.83mm 112mm 10" 4 81.32mm 115mm 10" 4 91.92mm 130mm 10" 4 98.78mm 139.7mm (5½") 12" 4 70.71mm 100mm 12" 4 71.84mm 101.6mm (4") 12" 5 65.83mm 112mm 12" 4 91.92mm 130mm 12" 4 98.78mm 139.7mm (5½") 12" 5 82.29mm 140mm 12" 5 97.04mm 165.1mm (6½") 13" 4 70.71mm 100mm 13" 4 79.20mm 112mm 13" 5 65.83mm 112mm 13" 4 91.92mm 130mm 13" 4 98.78mm 139.7mm (5½") 13" 5 82.29mm 140mm 13" 5 97.04mm 165.1mm (6½") 14" 4 70.71mm 100mm 14" 5 65.83mm 112mm 14" 5 82.29mm 140mm 14" 5 89.58mm 152.4mm (6") 14" 6 102.5mm 205mm 16" 5 97.04mm 165.1mm (6½") Close

Gross Weight Required *

Comments

Important Notes:

Delivery times vary dependent on axle type, usually around 19 working days (4 weeks). This can be confirmed when the drawing is approved. Please note that as this is a bespoke item, made to your specifications, it cannot be cancelled once the order has been placed.

As soon as we have received your order we will forward the dimensions to Al-ko so a drawing can be produced. Once the drawing is ready we will forward this to you for your confirmation that all the measurements are correct. Once conformation is received the axle will be put into production and a we will let you know a firm delivery date.

Please ‘add to basket’ and continue through checkout, you will not be charged. We will get back to you with a price.

Our Ref: 138514198 Categories: Axles Complete, Suspensions & Axles, Water Resistant Trailer Axles

Description

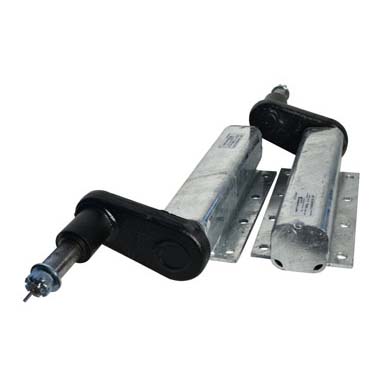

Al-ko Single Axle Unbraked, with cranked arms, complete with water resistant hubs.

Before ordering please complete the Specification details.

Additional information

Brand	Al-ko
Manufacturer	Al-ko

MPN	138514198

Reviews

There are no reviews yet.

Be the first to review “Al-ko Water Resistant Unbraked Single Axle Up to 750kg”

Further Assistance

Have a question about our Al-ko Water Resistant Unbraked Single Axle Up to 750kg? Our sales team are here to help Monday to Friday 9am to 5.30pm. Why not call us on 01392 216336.

Should you prefer to email us, please use our product enquiry form.
