Al-ko Water Resistant Braked Double Axle 1301kg to 2000kg

Name: Al-ko Water Resistant Braked Double Axle 1301kg to 2000kg
Brand: Al-ko
SKU: 138514398
Availability: InStock

Water Resistant Al-ko Braked Double Axle 1301kg to 2000kg

All made to measure axles have hot dip galvanised tubes & brackets.

Water Resistant Braked Axles feature maintenance-free water resistant bearings and bowden cables as standard.

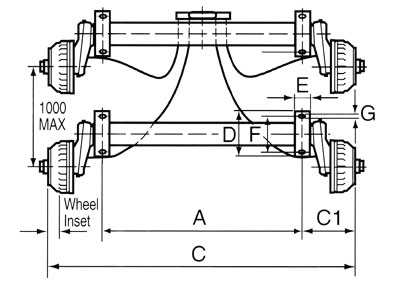

Please complete the information required to produce the correct axle. The dimension ‘A’ is to the centre of the holes in the mounting brackets and ‘C’ is the outer hub face dimension. You will need to let us know the PCD of the wheels you are using and the maximum gross weight you would like the axle(s) to be made to. Please read the important notes and then you can click the add to basket button and continue through the checkout.

If you are replacing an existing axle that does not look like the diagram pictured below then you should complete our Axle Enquiry Form

In line with Al-ko Kober Ltd policy of constant improvement, they reserve the right to change the specifications without notice

Part No: 1385 143 98 Model: Compact Axle Type: B850-10

Standard dimensions for the axle are as follows:
D =	200mm
E =	60mm
F =	160mm
G =	13mm x 20mm
C1 =	Minimum 187mm Maximum 312mm
Wheel Inset =	0-30mm
Drum Size =	200mm (2051)
Approx.Weight =	82kg

Please complete the following information:

Measurement A *

Measurement C *

Pitch Circle Diameter *.

The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the centre of all the studs, wheel bolts or wheel rim holes.

The easiest way calculate the PCD is as follows:

Identify the size of rim or tyre size. (This helps to narrow down the likely PCD sizes)
Measure the distance 'S' between two adjacent studs from the centre of each hole.
Using the relevant formula below (depending on how many studs/holes you have) enter the measurement of 'S' and calculate the PCD
Depending on how accurately the measurement of 'S' has been the PCD should equal one included in the table below. This table should also be able to help identify the correct PCD if 'S' in a few milimeters out.

Note: Imperial sizes are commonly used on UK trailers whereas European trailers use metric.

4 Studs/Holes

5 Studs/Holes

6 Studs/Holes

PCD Calculation Formula

4 Stud PCD =	S
4 Stud PCD =	0.7071

5 Stud PCD =	S
5 Stud PCD =	0.5878

6 Stud PCD =	S
6 Stud PCD =	0.5

Popular wheel Sizes & Stud Patterns

Rim Size	Studs	S	PCD
8"	3	76.90mm	88.8mm
8"	3	95.26mm	110mm
8"	4	70.71mm	100mm
8"	4	71.84mm	101.6mm (4")
8"	4	81.32mm	115mm
8"	4	91.92mm	130mm
10"	4	70.71mm	100mm
10"	4	71.84mm	101.6mm (4")
10"	4	79.20mm	112mm
10"	5	65.83mm	112mm
10"	4	81.32mm	115mm
10"	4	91.92mm	130mm
10"	4	98.78mm	139.7mm (5½")
12"	4	70.71mm	100mm
12"	4	71.84mm	101.6mm (4")
12"	5	65.83mm	112mm
12"	4	91.92mm	130mm
12"	4	98.78mm	139.7mm (5½")
12"	5	82.29mm	140mm
12"	5	97.04mm	165.1mm (6½")
13"	4	70.71mm	100mm
13"	4	79.20mm	112mm
13"	5	65.83mm	112mm
13"	4	91.92mm	130mm
13"	4	98.78mm	139.7mm (5½")
13"	5	82.29mm	140mm
13"	5	97.04mm	165.1mm (6½")
14"	4	70.71mm	100mm
14"	5	65.83mm	112mm
14"	5	82.29mm	140mm
14"	5	89.58mm	152.4mm (6")
14"	6	102.5mm	205mm
16"	5	97.04mm	165.1mm (6½")

Gross Weight Required *

Comments

Important Notes:

Delivery times vary dependent on axle type, usually around 19 working days (4 weeks). This can be confirmed when the drawing is approved. Please note that as this is a bespoke item, made to your specifications, it cannot be cancelled once the order has been placed.

As soon as we have received your order we will forward the dimensions to Al-ko so a drawing can be produced. Once the drawing is ready we will forward this to you for your confirmation that all the measurements are correct. Once conformation is received the axle will be put into production and a we will let you know a firm delivery date.

Please ‘add to basket’ and continue through checkout, you will not be charged. We will get back to you with a price.

Available Options:

Flushing Kit - allows a water hose to be connected to pipes which will take the clean water into the brake drums . We will give you a price for this addition as well. [+£0.00]

Our Ref: 138514398 Categories: Axles Complete, Suspensions & Axles, Water Resistant Trailer Axles

Description

Al-ko braked trailer galvanised DOUBLE axle complete with autoreverse overun brakes, brake drums, WATER RESISTANT bearings, wheel bolts, brake anchor plate, compensator and bowden cables.

Total Weight Range 1301kg to 2000kg

Before ordering please complete the Specification details.

Additional information

Brand	Al-ko
Manufacturer	Al-ko

MPN	138514398

Reviews

There are no reviews yet.

Be the first to review “Al-ko Water Resistant Braked Double Axle 1301kg to 2000kg”

Further Assistance

Have a question about our Al-ko Water Resistant Braked Double Axle 1301kg to 2000kg? Our sales team are here to help Monday to Friday 9am to 5.30pm. Why not call us on 01392 216336.

Should you prefer to email us, please use our product enquiry form.
